Twitter| Business Type | Manufacturer, Supplier, Trader |
| Country of Origin | India |
| Warranty | 1 Year |
| Type | Pressure Forming Machine |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

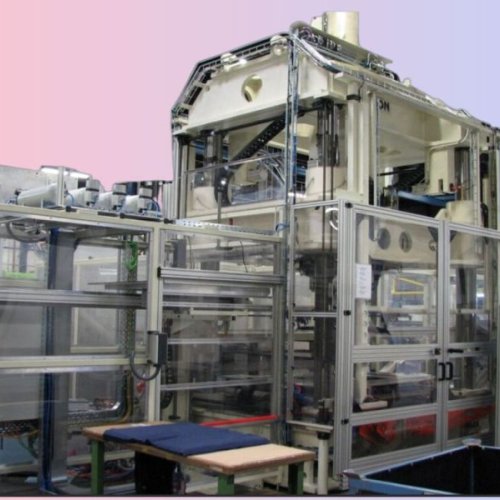

The pressure forming machine design allows option of air pressure forming & compression forming with help of hydraulic press. This is most suitable for fine details & complex forming. The design allows any nominal size of 500 mm x 500 mm upwards to 1500 mm x 1500 max. with standalone type (manual sheet feeding & product unloading) or auto machine. In auto machine, the cut sheet feed & the formed product unload automatically.
This machine is designed for multilayer sheets, composite sheet where high forming pressure is required
Machine incorporated with auto / manual sheet feeding, forming press suitable for vacuum /air pressure forming or hydraulic driven compression forming, auto product unloading.
- Pyrometer for sheet temperature measurement.
- Auto clamping for mold and plug.
- Mold temperature control system
- Automatic sheet clamping and de-clamping mechanisms.
- Sandwich heating system with options of infrared / quartz, high response to optimize energy consumption.
- Man-machine interface with touch screen and safety interlocks.
- Machine is designed in line with CE guidelines.
- Three level safety in machine, software–electric-pneumatic with light curtains / mechanical guards.
- Clamp adjustable.
- Auto sheet / roll loading and product unloading.
- Quartz and high speed heaters.
- Quick mold loading.
